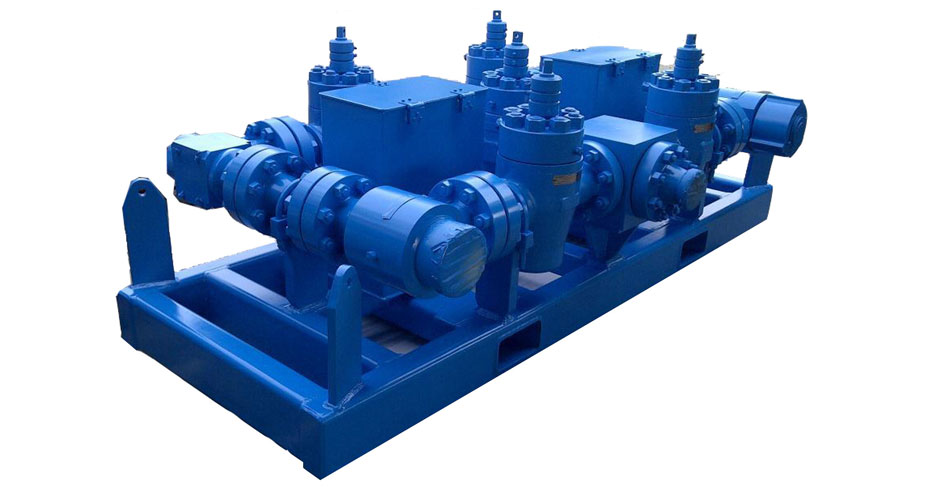

Choke Manifold
Choke Manifold
|
| Description |
10,000 psi |
15,000 psi |
| Size (in.) |
3 1/16 |
| Maximum working pressure (psi) |
10,000 |
15,000 |
| Operator temperature range (C) |
‐20 to 121 |
| Conditions |
H₂S/CO₂ |
| Needle type adjustable choke size (in) |
8/64 to 128/64 |
| Fixed choke bean sizes (in) (with/without Tungsten Carbide Insert) |
2/64 to 128/64
( Increments of 2/64) |
| Full bore bypass |
Yes |
| Applied codes |
API 6A ( PR1, PSL-2) |
| NACE MR-01-75 |
| Temperature class -P+U |
| Material Class - DD/DE |
|
|
|
|
|
